by community-syndication | Jun 7, 2013 | BizTalk Community Blogs via Syndication
Earlier this week, we announced the public preview of Windows Azure BizTalk Services (WABS). The responses so far has been quite positive. Within a short amount of time, we have reached the initial capacity that we planned to auto-approve. While we were clearly not expecting such phenomenal response, it is a good problem for us to have. We are in the process of manually clearing out the pending queue. Meanwhile, if you want to speed this up for your subscription, drop an email to [email protected] with a brief note on what you are intending to do. We shall try to take that up in priority. Please continue to use the support forum on MSDN for any other issues.
Some of you have also expressed some troubles in creating a new BizTalk Service. We have documented elaborate steps to provision a new BizTalk Service, but we see that most of the feedback so far has been to do with the dependencies / pre-requisites. So, in this post, we will look at what they are and some of the things you need to take care of.
BizTalk Service has the following main dependencies, listed below in the order in which you encounter in the create wizard:
- Tracking Database
- Access Control Service
- Monitoring Store
- SSL Certificate
Of the above, the ACS and the SSL certificates are pre-requisites that must be created before you try to create your BizTalk Service.
Figure 1 BizTalk Service and its dependencies
Tracking Database
As BizTalk Service receives and processes messages, it emits information that helps keep track of the various processing of the messages and allows you to troubleshoot any issues. This information is written to a SQL Azure Database, which we refer to as Tracking Database. For most of you, the easiest way to specify this would be to select the option to “Create a new SQL Database Instance” in the create wizard.
When this option is specified, you can choose the name of the database, the server and the credentials. I usually select an existing SQL Server but you could create a new one as well.
Access Control Services
All requests to BizTalk Service, whether it is deploy of a new bridge, agreement or posting a message, requires a valid token issued by Access Control Service (ACS). Thus, an ACS namespace needs to be associated with a BizTalk Service. You can read more about how ACS works in general here. In a nutshell, the client application will fetch a token from ACS by specifying certain credentials. The client will then present this token to BizTalk Service for authorization. BizTalk Service will determine if this is a valid token or not. The trust between BizTalk Service and the ACS namespace needs to be establish for this – and is achieved through a symmetric token signing key. All this is taken care of when the BizTalk Service is created.
However, as a pre-requisite, you must first create an Access Control Namespace and provide this in the create wizard. Creating a new ACS namespace is as easy as selecting a namespace, a region and a subscription:
To be more precise, when a BizTalk Service is created, the following will be created in the associated ACS Namespace:
- A relying party application for itself
- A default service identity with the name “owner” that clients can use to fetch a token
- A default rule to stamp the various claims required for the default service identity. BizTalk Service uses 3 claims: Manage, Listen and Send.
- A token signing key
To do the above, BizTalk Service requires a Management Service account with a password credential type. By default, when you create an ACS namespace, a default management service account called “ManagementClient” is already created for you. You can look that up from the ACS Management portal.
You need to retrieve the password and specify that in the BizTalk Service create wizard:
Monitoring Store
BizTalk Service uses an Azure Storage Account to write system monitoring information like Performance counters, trace files, as well as all the archived messages, which you can enable in certain scenarios. Again, the easiest way to specify this would be to select the option to “Create a new storage account”. You can then specify a name for your storage account.
NOTE: The name of the storage account must be between 3 and 24 characters and can contain only lowercase letters and numbers.
SSL Certificate
The BizTalk Service endpoint is securing using SSL/TLS. An X509 certificate with a private key in PKCS#12 format (.pfx file) is used to authenticate the service to the client. If you have your own custom domain name, you will also likely to have your own certificate issued by your trusted CA. For those of us who like to use BizTalk Service for testing or development purpose, a self-signed certificate can be used as well. A (self-signed) certificate can easily be created using the makecert.exe utility that comes with Windows SDK and Visual Studio. Here is an example:
makecert.exe -r –pe -n “CN=servicename.biztalk.windows.net” -e “01/01/2015” -ss my
NOTE: Your certificate should not have an expiry period of more than 5 years.
The certificate above can then be exported in .pfx format along with the private key. For that, you can use either certutil.exe, or the UI tool certmgr. I prefer certmgr as it is easier for me to browse and specify the inputs. Because a private key will need to be exported, a password needs to be specified when you export the certificate.
Once you have the above, you can specify that in the create wizard of BizTalk Service.
And that is the last step required for creating BizTalk Service. Once you complete the wizard, the creation of BizTalk Service will start.
One last thing…
As mentioned above, the BizTalk Service endpoint is secured using SSL/TLS and Access Control Service. For SSL to work, your client machines, from where you will either deploy apps or send messages to, will need to trust the SSL certificate that you have specified. For that, import the certificate to the “Trusted Root Certificate Authorities” store. NOTE: You do not need to share the private key for this. You could export a key without the private key.
To fetch a token from ACS, you need to specify an identity claim. As mentioned above, we create a default service identity called “owner”. You can retrieve the password for this identity from the Access Control Management portal. You will need that when you deploy your applications from Visual Studio or when you register your service in the BizTalk Portal. By default, we use the same password as that of your ACS management service account. But, you can always go ahead and change that. Or, you could create an entirely new identity – it is entirely your call. Just make sure you update /define the necessary Rules to stamp the right ACS claims.
Summary
This post tries to provide a brief summary of the dependencies of BizTalk Service. Hopefully, it will take care of some of the pain points you are facing while signing up and creating a new BizTalk Service. We are always looking for feedback. So, keep sending them across – either as comments to this post, or in the support forum.
Thanks!
The BizTalk Team
Blog Post by: BizTalk Blog
by community-syndication | Jun 7, 2013 | BizTalk Community Blogs via Syndication
Windows Azure IaaS – Explore how you can automatically provision Virtual Machines in Azure and how to setup a BizTalk environmnet in the cloud! Also find out how to create network connectivity between your cloud and on-premise networks.
by community-syndication | Jun 7, 2013 | BizTalk Community Blogs via Syndication
In this post I will describe using XSLT templates in maps followed by a general discussion on the BizTalk mapper per se (since the release of Windows Azure BizTalk Services I guess I should qualify what mapper I am referring to now: this is the BizTalk Server 2013 mapper ). For further information on XSLT, […]
Blog Post by: James Corbould
by community-syndication | Jun 6, 2013 | BizTalk Community Blogs via Syndication
I have now releasedversion 1.3.0 of the BizTalk BRE (Business Rules Engine) Pipeline Framework to the Codeplex project page. The goal of the framework is to leverage the business rules engine in BizTalk pipelines to evaluate conditions and perform actions against a BizTalk message’s content or context in a flexible manner which allows for an […]
Blog Post by: Johann
by community-syndication | Jun 6, 2013 | BizTalk Community Blogs via Syndication
The BizTalk BRE Pipeline Framework has now reached v1.3.0 and I thought it is about time I wrote a blog post on how it can be effectively used, and before I can do that I must also explain how it works. The very first thing you need to get your head around is the concept […]
Blog Post by: Johann
by community-syndication | Jun 6, 2013 | BizTalk Community Blogs via Syndication
One of the big advantage of having Microsoft Surface against any other tablet is it’s is a full blown Windows 8 PC (we are taking about PRO version here not RT). From an operating system perspective you’ll be able to install any application you typically can install on your Windows 8 Desktop/Laptop. I bought a […]
The post Installing BizTalk Server 2013 on Microsoft Surface PRO appeared first on BizTalk360 Blog.
Blog Post by: Saravana Kumar
by community-syndication | Jun 5, 2013 | BizTalk Community Blogs via Syndication
Last year in December 2012 during the BizTalk Summit we first as a preview saw the progress Microsoft BizTalk Product Team made on the BizTalk Services. Now it is here as preview for the general audience. Fellow Microsoft Integration MVP’s Kent Weare (Introducing Windows Azure BizTalk Services Preview -Part 1, Part 2) and Richard Seroter (Walkthrough of New Windows Azure BizTalk Services) shared
by community-syndication | Jun 5, 2013 | BizTalk Community Blogs via Syndication
One of the most commonly asked about and requested “features” of the BizTalk ESB Toolkit is the ESB Management Portal. I say “features” because I think we sometimes forget that this is just a sample application, and not something that is production ready. So the task I’ve undertaken is to not only make the necessary modifications to make the portal production ready, but also to add a few features. In an upcoming post I’ll review the changes made to prep the portal for production, but for now, I will share the new features I’ve been working on.
Itinerary Tracking/Monitoring
Possibly my favorite feature of the ESB Toolkit is the BAM activity that comes with the Itinerary engine. As we strive for better intelligence and instrumentation of our solutions, having this low hanging fruit available seems like an easy win. To begin collecting basic metrics of your itineraries, only two steps are required:
- Deploy the BAM Activity Definition. This is described in the ESB Toolkit installation guide:
Install BAM itinerary tracking activity definition. BAM itinerary tracking can be used to track the progress and eventual completion of itineraries as they advance through various steps. The BAM definition file (Microsoft.BizTalk.ESB.BAM.Itinerary.xml) is located in the BAM folder in the installation directory and can be installed using the Bm.exe tool. Use the following command as an example.
Bm.exe deploy-all -DefinitionFile:"C:\Program Files\Microsoft BizTalk ESB Toolkit 2.1\Bam\Microsoft.BizTalk.ESB.BAM.Itinerary.xml"

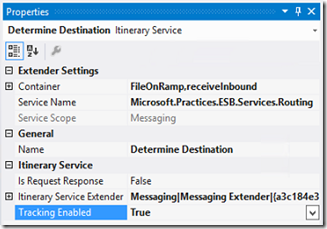

- Enable tracking on your Itinerary shapes. This is as simple as setting the “Enable Tracking” property on each Itinerary Service in the Itinerary Designer to “True”.
Now you have some basic tracking information being collected for your Itinerary. However, there is no way out of the box to view this tracking data other than the BAM Portaluntil now. By simple adding a few components to the ESB Portal web application, and simply querying the BAMPrimaryImport and EsbItineraryDb databases, we can now see tracking information for our itineraries. Here is what the new pages look like (at least these early “beta” versions):

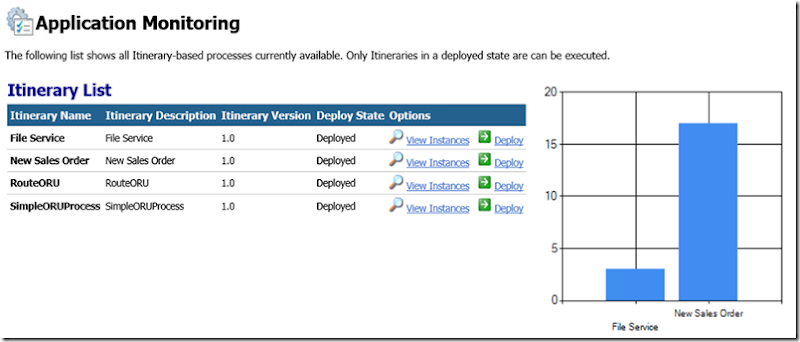

List of Itineraries
This is a list of all the Itineraries in the EsbItineraryDb, providing a simple inventory of my itinerary-based processes. The chart just shows what is possible in terms of easy reporting

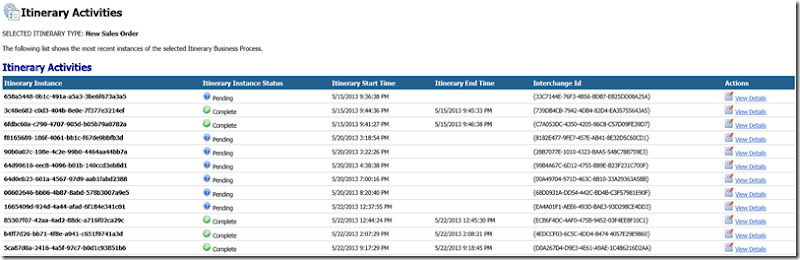

View of Instances for a selected Itinerary Type
Details of each step of a selected Itinerary Instance

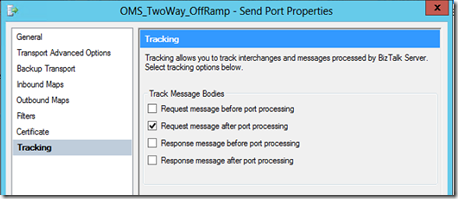

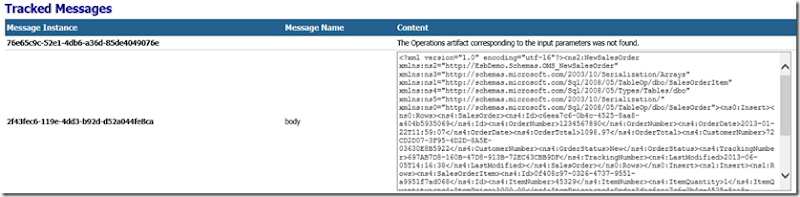

Notice the links here for each step. We can drill down even further to view any Tracked Messages in DTA, as well as view the Fault (something we already have with the portal out of the box). Here you can see I’ve enabled DTA tracking for just the after-port-processing message:
and I get a message body in the ESB Portal for that one message.
The great thing about this is that no changes are necessary to accommodate new itineraries. Just enable tracking on your Itinerary Services before you deploy, and it will automatically show up.
SSO Application Configuration Management
I’m sure more than a few of us have used SSO as a configuration store for BizTalk solutions. I grew increasingly annoyed that I had to use a separate tool to manage those key-value pairs, not to mention that the tools available didn’t work very well. So, I also added SSO Configuration management to this modified ESB Portal. Very simple and straightforward, but being able to do all of this in one place I feel is a big value-add. One note on this functionality was the creation of a SSO WCF service to give the portal access to the configuration data in the SSO database. This service not only make these portal pages possible, but provide a way for non-BizTalk applications to use SSO as a configuration store without a requirement to execute on a BizTalk Server or a server licensed to run SSO dll’s.
View SSO Configuration Applications
Notice how only my custom SSO configurations show upanything native to BizTalk is filtered out.

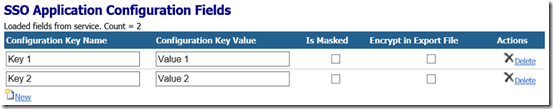

View/Edit SSO Configuration Application
Obviously I’ve got some clean-up work to do on the UIbeing a BizTalk-person, my front-end skills are rusty to say the least! I hope this gives you some ideas on what is possible when you combine the power of Itinerary-based processing using the ESB Toolkit with some enhancements to the ESB Portal.
Cheers,
Dan
by community-syndication | Jun 4, 2013 | BizTalk Community Blogs via Syndication
Unexpected high traffic and high demand causes Myers website to fail..
These stories are becoming more and more common place in todays world and the interesting
thing is, that we have solutions available to this exact problem in place for several
years.
Cloud – Azure – elastic scale, on-demand etc.
The secret is how do we go from on premise #fail to a hybrid blend
scenario where we can use the best of both worlds – that is what we’ve been doing
for years.
Read more here – http://www.breeze.net/news/breezetalk/traffic-causes-myer-stocktake-fail-let%27s-talk-cloud.aspx
Blog Post by: Mick Badran
by community-syndication | Jun 4, 2013 | BizTalk Community Blogs via Syndication
Introduction
Earlier today we announced the public preview of our Windows Azure BizTalk Service (WABS). We have collaborated with multiple partners and customers to build a simple, powerful and extensible cloud-based integration service that provides Business-to-Business (B2B) and Enterprise Application Integration (EAI) capabilities for delivering cloud and hybrid integration solutions. The service runs on a secure, dedicated per tenant environment that you can provision on demand, while it is being managed and operated by Microsoft.
Let’s look at a brief overview of our B2B offering in WABS.
B2B in WABS
To be successful as a business, enterprises must effectively manage data exchanged with other organizations such as vendors and business partners. Data received from partner organizations is often categorized as business-to-business (B2B) data transfer. One of the standard and most commonly used suite of protocols for B2B data transfer is Electronic Data Interchange or EDI.
Some of the challenges that customers face while opting for a B2B solution are:
- Total cost of ownership (TCO) for setting up a B2B solution, especially for the small and medium business (SMB) shops
- High maintenance cost for the B2B solutions including onboarding partners, managing agreements, etc.
Using B2B in WABS enables customers to:
- Lower their TCO with the pay-as-you-use model.
- Easily manage and onboard trading partners using the BizTalk Services Portal. With the BizTalk Services Portal, customers will be able to cut down the on-boarding time from weeks to days.
- Leverage Microsoft hosted B2B pipelines as services to exchange B2B documents and run them at scale for customers. This minimizes overhead in managing B2B pipelines and their corresponding scale issues with dedicated servers.
The WABS B2B solution, which comprises of the BizTalk Services Portal and B2B pipelines, enables customers to add trading partners and configure B2B pipelines that can be deployed to WABS. The trading partners will then be able to send EDI messages using Http, AS2, and FTP transports. Once the message is received, it will be processed by the B2B pipeline deployed on the cloud and will be routed to the destination configured in the B2B pipeline.
Feature outline and overview
B2B in WABS provides a multitude of features with the goal of making it Simple, Powerful and Extensible at the same time. To fulfill business needs, Service Providers need to model, store, and manage information about:
Partners and their businesses
Rules of engagement with the partners, which include details such as message encoding protocol (EDI standards like X12), transport protocol (AS2), etc.
Let us review some of these and how WABS B2B helps solve this.
Partners
Each participating organization in a business relationship is a trading partner. A trading partner is at the root level and forms the base for a trading partner solution. A trading partner is one of the two or more participants in an ongoing business relationship.
Using the Windows Azure BizTalk Portal, one can easily set up partners representing all the organizations involved in a business trade. Each partner has an associated profile with it which can be updated as per business need. Multiple profiles may be created representing the different divisions of the organization.
Agreements
A Trading Partner Agreement (TPA) is defined as a definitive and binding agreement between two trading partners for transacting messages over a specific B2B protocol. It is a comprehensive collection of all aspects governing the business transaction between the two trading partners.
The Windows Azure BizTalk Portal allows easy setting up of agreements between Trading Partners. Using the profiles created for Partners, one can very easily and quickly come up with templates for settings up agreements while reducing configuration errors.
Artifacts
WABS portal allows one to manage the artifacts used for B2B operations. There are currently 4 kinds of artifacts supported – schemas, maps, certificates and assemblies. The portal allows users to upload and delete artifacts related to the partner agreements easily.
You are also able to manage the bridges created as part of the agreement deployments.
Tracking
WABS provides the ability to monitor EDI and AS2 messages, batches, and bridges deployed in an Azure BizTalk Services subscription. The tracking information helps you in the following ways:
- · Helps troubleshoot message processing issues.
- · Provides specific details of a message’s properties
- · Creates copies of messages
- · Helps determine the flow of events when a message is being processing
You must enable tracking as part of an agreement before you can view tracking data
Extensibility
The Windows Azure BizTalk Services Portal offers a rich user experience to create and manage partners and agreements for business-to-business messaging. However, at times you need to programmatically create the different entities that are part of BizTalk Services Portal. Windows Azure BizTalk Services offers a WCF Data Service-based object model to programmatically create and maintain different entities such as partners, agreement, etc. for the BizTalk Services Portal.
Along with this, Powershell Cmdlets are exposed for activities like creating artifacts, deleting artifacts, Start/Stop source, etc. to provide users with rich automation & scripting capabilities. These Powershell Cmdlets will be captured in more detail in an additional blog. The documentation has more information about these as well.
Important links
Please refer to the below links for more information.
Keep a lookout for more blogs in the near future explaining more of WABS capabilities. We hope that the community will continue to invest in WABS as we have and drive its evolution.
Blog Post by: BizTalk Blog
