Creating BizTalk Server 2016 Developer from Azure Gallery Image

Creating BizTalk Server 2016 Developer from Azure Gallery Image

Published by: Bill Chesnut

The process for creating a BizTalk 2016 Developer machine with 2016 has changed from the previous versions, the Azure Gallery Image does not have SQL, Visual Studio or BizTalk installed, so I will walk you through those steps here.

Start with either the Classic or ARM Azure Gallery Image (ARM Image show below)


Logon to your newly created machine


You might want to turn off the IE Enhanced Security Configuration or you will be prompted for every website you visit


The image does not contain Visual Studio or SQL so you will need to download those:

You might need to signup for a free Visual Studio Dev Essentials subscription on

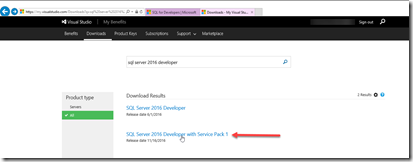

SQL 2016 Developer:


Visual Studio 2015 (Community is free, use Professional or Enterprise if you have an MSDN subscription)


SQL Server Management Tools –

You should now have these files in your download directory


Installing SQL 2016 Developer Edition

We are now going to install SQL 2016 Developer Edition on the image

Note: for this installation I will be using the Administrator (bizadmin) for all services, you can use the accounts dictated by your companies security policies

Installing SQL Management Tools

We are now going to install SQL 2016 Management Tools on the image

Double Click on the setup application image
Click Install image
Installation Complete, Click Close image

Installing Visual Studio 2015 Community Edition

We are now going to install Visual Studio 2015 Community Edition on the image

Note: if you have MSDN subscription, feel free to install professional or enterprise

Installing BizTalk Server 2016 Developer Edition

We are now going to install BizTalk Server 2016 Developer Edition on the image

Configuring BizTalk Server 2016 Developer Edition

We are now going to configure BizTalk Server 2016 Developer Edition on the image

Enter the “User name” and “Password” that you want to use for the BizTalk Server Services, I am using the administrators account but feel free to create and use another account

Click Configure

Note: Ignore the warning about administrator account, this is a developer machine not production

Click Next image
Configuration Complete

Click Finish


Installing LOB Adapters

We are now going to Install the LOB Adapters & SDK on the image

Double Click on Setup image
Click “Install Microsoft BizTalk Adapters” image
Click Step 1… to install SDK

Follow Setup Wizard

Note: I typically do a Complete install in everything in the Adapter Pack on a developer machine

Click Step 2… to install Adapter Pack

Follow Setup Wizard

Note: I typically do a Complete install in everything in the Adapter Pack on a developer machine

Click Step 3… to install Adapter Pack (x64)

Follow Setup Wizard

Note: I typically do a Complete install in everything in the Adapter Pack on a developer machine

Click Step 4… to install Adapter for Enterprise Applications

Follow Setup Wizard

Note: I typically do a Complete install in everything in the Adapter Pack on a developer machine

Open the BizTalk Server Administration Console

Expand Tree, Right Click Adapters, Click New, Click Adapter

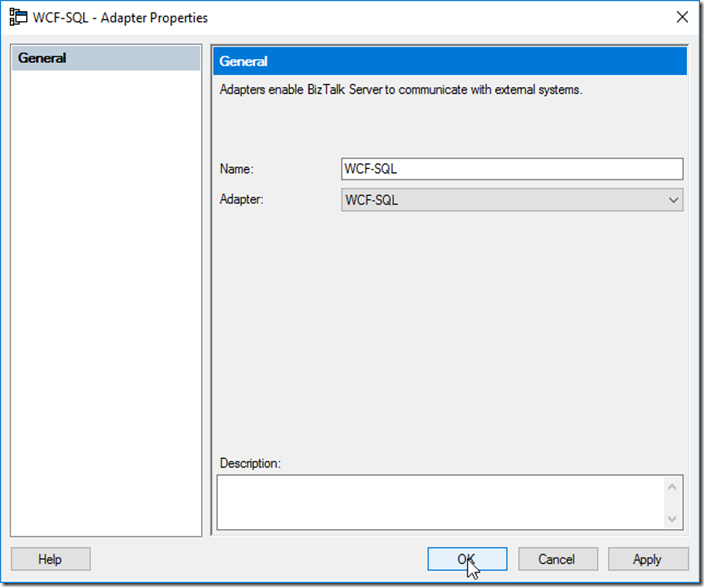

Type Name WCF-SQL, Select WCF-SQL from Adapter drop down list

Click OK

Note: this is the only adapter I typically add, but feel free to add the rest of the adapters if you development project is going to need them.


Installing & Configuring ESB Toolkit (Optional)

We are now going to Install and Configure ESB Toolkit on the image

Final Configuration for Developer Image

We are now going to do the final configuration on the image

Open Microsoft SQL Server Management Studio from the Menu image
Connect to your database server

Click Connect

Note: full stop or period means local machine

Click “New Query” image
For a developer image of BizTalk is it not necessary to create transaction logs for the BizTalk Databases, so the command below will set all database into simple recovery mode so no transaction logs are created and not database backups are required

Execute the Query

select ‘alter database [‘+name+’] set recovery simple’ from master.sys.databases where database_id > 4 and state_desc = ‘online’

Copy the output of the previous command into a new query window image
Click Execute

Note: all the databases are in simple recovery mode so there is no need to configure the BizTalk Backup Job

To keep the tracking database for becoming large on the developer image, we need to setup the DTA Purge Job

Right click on the “DTA Purge and Archive (BizTalkDTADb)”

Click Properties

Change the name to “DTA Purge (BizTalkDTADb)”

Click Steps

Edit the Step image
Change the step name to “Purge”

Update the Command to the text below

Click Ok, Click Ok

declare @dtLastBackup datetime
set @dtLastBackup = GetUTCDate()
exec dtasp_PurgeTrackingDatabase 1, 10, 11, @dtLastBackup

Right click on the “DTA Purge (BizTalkDTADb)”

Click Enable

Note: you can then do the same and select “Start Job at Step” to make sure you don’t have any syntax errors.



This finished the basic configuration with a few extra, if you are using BizUnit, BTDF, SpecFlow or any other tools, you will need to install them now.

I would also recommend running windows update to get the latest updates installed

I hope this instruction and screen shots help you get your BizTalk Server 2016 Developer Azure Gallery Image up and running smoothly
