Using BizTalk360 for alarm notification statistics

Using BizTalk360 for alarm notification statistics

It is nothing new that BizTalk360 enables you to set up automated monitoring for BizTalk. This includes the deployed BizTalk application artifacts and different kind of endpoints. You can even track the processing which is taking place in your BizTalk environment.

For each unexpected situation for which you have set up monitoring, you can receive notifications via for example email, SMS/Text message or the Event Log. Besides that, BizTalk360 also provides Notification channels to connect to products like Slack, Microsoft Teams and HP Operations Manager. In case you are using ServiceNow, you can even have BizTalk360 generate incidents into that product! If that still does not meet your requirements, you can use a Web Hook, or the easy-to-use API provided by the product to integrate with your systems.
The BizTalk360 database contains information about the transmitted notifications.

Collecting Alarm statistics

Recently, we had a call with a consultancy company which manages several BizTalk environments for their clients. These clients are using BizTalk360 for operating and monitoring the BizTalk environments.

The consultancy company was interested in knowing whether BizTalk360 provides any statistics about all the alarms which were triggered over time. This kind of statistics serves different goals. On one side, this kind of information gives insight in components which frequently have outage, enabling to take counter measures. On the other side, this can also be used to provide such information to the client of the consultancy company as a kind of reporting.

In this blog post we describe how you can use the information in the BizTalk360 database, to show statistics about which alarms have been transmitting which kind of notifications over time.

Showing SQL data in BizTalk360

As already mentioned, the information about the transmitted notifications is stored in the BizTalk360 database. BizTalk360 provides different capabilities to show data which is stored in SQL Server databases. These capabilities are:

• Secure SQL Queries – see https://docs.biztalk360.com/docs/secure-sql-queries
• Custom Widgets – see https://docs.biztalk360.com/docs/creating-a-custom-widget-for-executing-secure-sql-queries

Depending on the requirements how you want to be able to view that data, you can use either or both features, but the main characteristics are that Secure SQL Queries are mainly used manually, where Custom Widgets can become shown on a dashboard and the output will be refreshed automatically.

The information we will be using in this blog post is stored in a table called b360_alert_notify_ToBeNotified. The content of that table is specific to Threshold monitoring. If you need more detailed information about Data Monitoring statistics, you should have a look at a different table. Based on the b360_alert_notify_ToBeNotified table, you can write a SQL query which looks like below:

SELECT aa.Name AS 'Alarm Name',
an.NotificationRequiredType AS 'Notification Type',
COUNT(an.AlarmId) AS Count,
MAX(CreatedDateTime) AS 'Most recent'
FROM b360_alert_notify_ToBeNotified an
RIGHT OUTER JOIN b360_alert_Alarm aa ON an.AlarmId = aa.Id
WHERE (an.NotificationRequiredType <> 'Regular')
GROUP BY aa.Name, an.NotificationRequiredType
order by [Alarm Name]

In above query, notifications of type ‘Regular’ have been left out. Regular notifications refer to the Health alarms which can be received at a specified time, to show the state of all the mapped artifacts of an alarm. For this scenario, that information is considered as not relevant.

Retention period

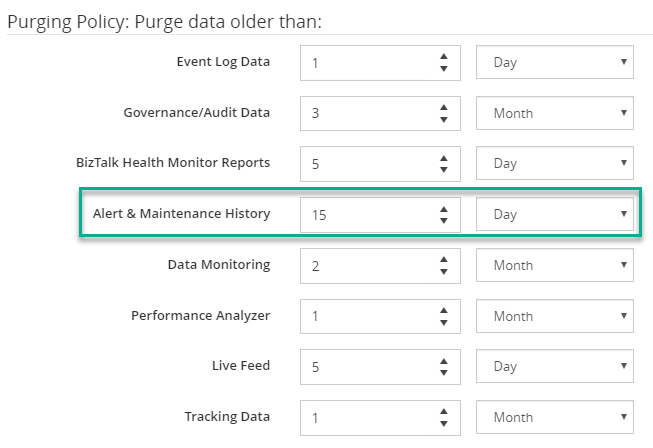

It is good to know, that without any filters, the data will be shown according the Purging policy for Alert & Maintenance History. This policy can be viewed and reconfigured in the Settings area, under BizTalk360 Health, in the Purging Policy screen.

Obviously, in case you do want to see a bit more limited data set, you can add WHERE conditions based on the CreatedDateTime field.

Showing Alarm statistics as a Secure SQL Query

When you create a Secure SQL Query for this, the output of the query can look like below.

As you can see, the query shows information about the name of the alarm, which kind of notification is involved, the count of notifications and the most recent date/time a notification has been transmitted, for that alarm/notification type combination.

If you want to know more about how to create Secure SQL Queries, you can check out the Documentation portal about this feature.

Having this kind of information as a Secure SQL Query can be very handy. You have the information easily at hand by accessing that query and run it. The results can also be exported to a .CSV file.

Showing Alarm statistics as a Custom Widget

If you want to have an even better experience, you can consider creating a Custom Widget for this. Doing so, enables you to have this information on a dashboard and because of the behavior of these dashboards, the widget will be automatically refreshed. Besides that, by a simple click, you can export the entire dashboard, which could contain more statistical widgets, to a PDF file and provide it to your clients.

Based on the query we have seen earlier in this article such a widget will look like below.

Once the widget has been added to a dashboard, the query will automatically be executed, and the data will be refreshed each minute. If needed, you can change the refresh interval in the script of the widget.

If you want to read more about creating such Custom Widgets, check the Documentation portal for it. It contains some detailed articles about this topic.

Conclusion

We have shown another way on how BizTalk360 can be useful. So, if you have any questions about this capability, or anything else related to BizTalk360 feel free to contact us. Why not give BizTalk360 a try! You can download a free trial which contains all the features for a limited time.

Author: Lex Hegt

Lex Hegt works in the IT sector for more than 25 years, mainly in roles as developer and administrator. He works with BizTalk since BizTalk Server 2004. Currently he is a Technical Lead at BizTalk360. View all posts by Lex Hegt

Terminating Dehydrated Service instances through BizTalk360 PowerShell Notification channel

Terminating Dehydrated Service instances through BizTalk360 PowerShell Notification channel

BizTalk360 has introduced notification channels from its major version release V8.0. One of the most greeted features from our customers. With the introduction of this capability, it’s easy to send alerts to any external systems like your ticketing system, internal databases, calling REST endpoints or executing PowerShell scripts.

One of the most powerful capabilities is to use an API, to enable you to create notification channels for connecting to your own systems. The PowerShell notification channel allows you to execute a PowerShell script, each time an alarm is triggered when the threshold is crossed.

During business transactions in mission-critical BizTalk Server environments, if any of the service instances are waiting for response messages, they will be turned to the dehydrated state. There might be valid reasons why such service instances are not needed anymore. So, as a BizTalk administrator, you should keep an eye on these instances in their environments to avoid further critical business consequences.

BizTalk360 provides Monitoring capabilities for dehydrated service instances and it sends periodic alerts via different notification channels. One such channel is the PowerShell Notification channel.

This blog post will give you an insight about how to terminate the dehydrated service instances through the PowerShell notification channel in BizTalk360, just by configuring it with the Alarms.

Steps to implement the PowerShell Notification Channel

1. Create the PowerShell script
2. Configure the PowerShell notification channel
3. Configure the PowerShell notification channel with the Alarm

Creating the PowerShell script

To develop the PowerShell script, it is essential to identify the API’s which will take care of these actions.

Step 1:

Retrieve the dehydrated service instances from the Message Box using the below API.
http://localhost/BizTalk360/Services.REST/BizTalkQueryService.svc/ExecuteServiceInstanceQuery

Code Snippet


import-Module Microsoft.PowerShell.Management
$username = "DomainUserName"
$password = "ABC1236890"
$password_base64 = ConvertTo-SecureString $password -AsPlainText -Force
$creds = New-Object System.Management.Automation.PSCredential ($username, $password_base64)
$body_ExecuteServiceInstanceQuery='{
"context":{
"callerReference":"REST-SAMPLE",
"environmentSettings":{
"id":"3beb9328-c435-47ed-8c51-a406117e632b",
"licenseEdition":0
}
},
"query":{
"compositeFilter":{
"filterDescriptorCollection":[
{
"member":"Instance Status",
"filterAvailableMember":[
{
"name":"Application",
"alias":"Application Name",
"dataType": 1,
"isList":true,
"isAutoComplete":false
},
{
"name":"CreationTime",
"alias":"Creation Time",
"dataType":0,
"isList":false,
"isAutoComplete":false
},
{
"name":"GroupResultsBy",
"alias": "Group Results By",
"dataType": 1,
"isList": true,
"isAutoComplete": false
},
{
"name": "HostName",
"alias": "Host Name",
"dataType": 1,
"isList": true,
"isAutoComplete": false
},
{
"name": "InstanceStatus",
"alias": "Instance Status",
"dataType": 1,
"isList": true,
"isAutoComplete": false
},
{
"name": "ServiceClass",
"alias": "Service Class",
"dataType": 1,
"isList": true,
"isAutoComplete": false
},
{
"name": "ServiceInstanceID",
"alias": "Service Instance ID",
"dataType": 1,
"isList": false,
"isAutoComplete": false
},
{
"name": "ServiceName",
"alias": "Service Name",
"dataType": 1,
"isList": true,
"isAutoComplete": false
},
{
"name": "ServiceTypeID",
"alias": "ServiceType ID",
"dataType": 1,
"isList": false,
"isAutoComplete": false
}
],
"memberType": 1,
"filterOperator": 2,
"value": "Dehydrated",
"progressIndicator": false,
"validationError": "",
"isValid": true,
"tempValue": ""
}
]
},
"maxMatches": "10",
"queryType": 0
},
"maxMatches": "10"
}'
$headers=@{"Content-Type"="application/json"}
$uri="http://BT360SUP03/BizTalk360/Services.REST/BizTalkQueryService.svc/ExecuteServiceInstanceQuery"
$response = Invoke-WebRequest -Uri $uri -Headers $headers -Method Post -Body $body_ExecuteServiceInstanceQuery -Credential $creds

Step 2:

Pass the retrieved dehydrated service instances for the termination process to the below API.

http://localhost/BizTalk360//Services.REST/BizTalkQueryService.svc/ExecuteServiceInstanceOperation

Code Snippet


$ExecuteServiceInstanceQueryobj = ConvertFrom-Json $response
if (!$ExecuteServiceInstanceQueryobj.serviceInstances) {write-Host "There are no dehydrated service instances for termination"}

foreach ($serviceinstance in $ExecuteServiceInstanceQueryobj.serviceInstances)
{
$body_ExecuteServiceInstanceOperation='{
"context":{
"callerReference":"REST-SAMPLE",
"environmentSettings":{
"id":"3beb9328-c435-47ed-8c51-a406117e632b",
"licenseEdition":0
}
},
"serviceInstances":[
{
"ServiceName": "'+$($serviceinstance.ServiceName)+'",
"ServiceClass": "Orchestration",
"StatusDisplayText": "Dehydrated",
"Application":"'+$($serviceinstance.application)+'",
"ServiceInstanceID":"'+$($serviceinstance.serviceInstanceID)+'"
}
],
"operation": 1
}'
$headers1=@{"Content-Type"="application/json"}
$uri1="http://localhost/BizTalk360//Services.REST/BizTalkQueryService.svc/ExecuteServiceInstanceOperation"
$response1 = Invoke-WebRequest -Uri $uri1 -Headers $headers1 -Method Post -Body $body_ExecuteServiceInstanceOperation -Credential $creds
$ExecuteServiceInstanceQueryobj = ConvertFrom-Json $response
}

Points to Remember

Following are the parameters need to be changed as per your environment configuration.

  1. Service Account credentials for UserName
  2. Password
  3. Environment Id
  4. URI

As mentioned in the introduction section, BizTalk360 exposes its APIs and can be found in the section Settings -> API documentation.

Terminating Dehydrated Service instances - API Documentation screen

Configuring the PowerShell Notification channel

Once the PowerShell script has been created, the next step is to configure it with the notification channel in BizTalk360.The PowerShell notification channel can be found in Settings -> Monitoring Notification Channels ->B360.Notifier.PowerShellNotification.

Terminating Dehydrated Service instances - Configure PowerShell Notification channel

Select the notification channel and click on the “Configure” button on the top menu bar. In the Configuration Notification Channel section, enter the location of the script which has been created for terminating the dehydrated service instances and click on the Configure button. Now, the PowerShell script has been configured with the BizTalk360 notification channel.

Terminating Dehydrated Service instances - Associate the Powershell Script Path

Associating the PowerShell Notification Channel with Alarms

The next primary step is to Map the notification channel with the Alarms for further execution and configure the Threshold violation settings, as how frequent you want to terminate the dehydrated service instances from your environment. Based on the settings, BizTalk360 will terminate the dehydrated service instances in your BizTalk Server environment.

Terminating Dehydrated Service instances - Alarm Configuration with PowerShell Notification Channel

Terminating Dehydrated Service instances - Threshold Alarm Settings

Conclusion

We strongly believe BizTalk360 has transformed the way you do your work. It is a very common situation where administrators depend on various tools like BizTalk admin console, SQL queries and other custom build tools to monitor their BizTalk Environment. But with this capability “PowerShell Notification Channel”, administrators can create their own scripts and automate their daily activities. In this blog post, we have explained one such scenario we can accommodate with BizTalk360. This capability is not restricted for some functionalities, the component is generically implemented in the product where our customers can achieve a lot more business scenarios by using this powerful capability.

Do try BizTalk360 one-stop monitoring tool for your BizTalk Server.

Author: Mekala Ramesh

Lead QA & Product Support at BizTalk360 – Having around 8 years of experience in software testing & customer support field with the strong knowledge in SDLC and STLC phases. Specialized in various types of testing methodologies. Passionate tester, who always want to deliver the software product with the best quality to the end customers. Possess strong knowledge, to establish the testing process from scratch. Playing a pivotal role in BizTalk360 is making me deliver the product to every customer in a delicious way. View all posts by Mekala Ramesh
