Azure API Management Feature: SOAP pass-through

Azure API Management Feature: SOAP pass-through

By Bill Chesnut

This is the first post in a multi part series on the features of Azure API Management.

When companies embark on a migration to Azure, they tend to have lots of legacy application, when they start using Azure API Management (APIM), they also want to expose some of these legacy applications, that is where the SOAP pass-through feature of APIM helps out. This feature allow you to publish these SOAP services in APIM.

For this blog post I am going to demonstrate how you publish a BizTalk SOAP service in APIM. With APIM you can publish SOAP services by importing the WSDL (this can be either via the URL or by uploading the WSDL file), In APIM Click the “API” menu item on the left, then Click “WSDL”


In this demonstration I am going to use an uploaded file, this is the WSDL from a BizTalk orchestration exposed as a WCF Request/Response Service, it only has a single operation ‘submit”. I am using an uploaded file because the BizTalk server is hosted in an Azure Virtual Machine and I have changed the URL to reflect the DNS name of the Virtual Machine. I could have also changed the name in APIM after the WSDL was imported. Configure as shown and click “Create”


Once the WSDL import is complete, we can now see the API and it’s operations, now let click “Settings” to look at the API settings, this is where we can change the URL to the BizTalk Server hosting our SOAP Service, instead of inside the WSDL file as I have done.


Now lets click the “Test” tab, this is where we can test our API Operation, before we release them to our consumers


APIM Fills in all the details to test the API, notice that the payload for the API is XML, this is because we chose SOAP pass-through, SOAP services are XML based. Click “Send”


You can now see the results of our call to the BizTalk hosted SOAP Service, the results are in XML, now lets click the “Trace” tab, this will give us everything that has taken place in APIM as part of our call to the BizTalk SOAP service.  Scroll down to see the full Trace.


Hopefully this has given you a quick demonstration on how to expose your SOAP Services with APIM.

Cross Posted on http://www.sixpivot.com.au

Analytics Features enhancements in BizTalk360 v8.8

Analytics Features enhancements in BizTalk360 v8.8

Using BizTalk360 Analytics, you can visualize a lot of interesting facts about your BizTalk environment, like number of messages processed, failure rate at message type level, BizTalk server CPU/Memory performances, BizTalk process (host instances, SSO, rules engine, EDI etc), CPU/memory utilization and lots more.

In a data-driven business setup, there will be scenarios where critical executive decisions are made based on the performance reports of various components of the listed servers in their environment. BizTalk360 aims to offer an out of the box tool with similar capabilities as the Performance Monitor tool in Windows servers. BizTalk360 Analytics offers visual display of the most important performance counters that are consolidated and arranged on a single screen so that the information can be monitored in a glance. Custom reports can be built in minutes with the metrics that really count for your business, and they’re easy to share with other users in the system. In addition, dashboards can give you a summary of many reports on a single page using drag-and-drop widgets for fast, easy customization.

In every new release of BizTalk360, we include new features and enhancements to make the product more usable for the customers and adding value for them as per the below quotes,

Excellent organisations consistently add value for the customers by understanding, anticipating and fulfilling needs, expectations and opportunities

Let’s see what we have brought for the Analytics module in BizTalk360 v8.8:

  • Zoom In and Out option for the Message Patterns
  • Renaming option for the Message Pattern title
  • Restart option for the Analytics and Monitoring Windows services

In this article, we are having a look at all these improvements.

Zoom In and Out option for the message patterns

In a typical BizTalk environment, there will be different message flows happening. It could be a simple one-way messaging or more complex message pattern with an orchestration connecting different ports. The unique message patterns are captured and displayed in BizTalk360 with a graphical representation. With messaging patterns, you can get to know how many messages passed through a particular port and the average time of execution for the messages across a time period.

The difficulty here lies in viewing the complex patterns within small screen resolution. For this reason, we have included the zoom in/out feature for the message patterns in the full screen mode.

Analytics features enhancements in BizTalk360 v8.8: Zoom In/Out button in Graphical Flow

This option comes into picture when the message pattern is opened in full screen mode and you can zoom in /out using either the mouse or the icons present. In the full screen mode, the properties of the ports are not displayed. To view the properties, this mode needs to be exited.

Renaming option for the Message Pattern title

Once a message pattern is recognized by BizTalk360, the message flow is saved with a GUID as its title. This would be difficult to remember and not user friendly. Hence, we had the edit option in a separate screen, enabling the user to provide a descriptive name and detailed description for the message pattern.
Based on the few requests from the customers however, there is an extra capability added to rename the message pattern title from the details screen itself. In this case, the users can directly rename the title in the details section where the message flow is seen instead of going to a separate screen.

Analytics features enhancements in BizTalk360 v8.8: Zoom In/Out in Message Patterns

Restart option for Analytics and Monitoring Windows services

Sometimes an exception occurs during monitoring or in the analytics section. Once that exception is resolved, it is recommended to restart these services to reset the errors in the corresponding sub services.

In this scenario, the user would need to login to the server where the service is installed and then restart it. If the service is installed in more than one server, then they would need to login to all the servers for restarting the services.

To make life a little bit easier, we have added the restart option in BizTalk360 application. When this option is clicked, the service installed in multiple servers will get restarted.

Analytics features enhancements in BizTalk360 v8.8: Restart BizTalk360 services

Other improvements

There are other bug fixes as well, in the Analytics section included as part of the BizTalk360 v8.8 release, which include:

  • Improving the performance by deleting the temporary tables created
    • In BizTalk360 Analytics section, for displaying the data for the messaging patterns, we directly query the MessageBox database and the Tracking database and store them in the temporary table in TempDB. Depending on the volume of data, these temporary tables may cause performance hinge in BizTalk360. Based on the auto growth settings in the SQL server, the TempDb will grow and results in SQL Exception for few widgets. The code is modified to delete the temporary tables after fetching data. Hence, data growth is controlled and there will not be any performance glitch.
  • The edit icon for the date time range in the Analytics widget has been removed as there is already a link present
    • The custom widgets in the Analytics section is designed to display the data based on the date time range, which is last 24 hours, 7 days and 30 days. You also have the option to set the custom date time range. The datetime range in the custom widget data already has the link to edit the date. There was an additional edit link present in these widgets which we thought would be unnecessary as it may not be used. Hence this link was removed to make the widgets more user friendly.
  • Displaying the data for available memory in the widget
    • Widgets in the Analytics Dashboard are designed to provide the user with a graphical data. There are three different types of widgets that can be used,
      • Default/Basic Widgets
      • Static Widgets
      • Custom Widgets
      • You can create and customize the different types of widgets only under the Operations Dashboard and Analytics Dashboard. The process to perform these operations remains the same.

Sometimes there may be inconsistent occurrence of certain issues which may be difficult to be identified. One such issue was that “When the Available memory % counter for SQL server was added to the custom widget and when the widget was refreshed, the data for memory % was not getting displayed in the graph”. The root cause for this case was identified and fixed in BizTalk360 v8.8.

Please refer the release notes link below for the complete list of enhancements and bug fixes in v8.8:

https://docs.biztalk360.com/v1.0/docs/v8821162405

Conclusion

Why not give BizTalk360 a try! It takes about 10 minutes to install on your BizTalk environments and you can witness and check the security and productivity features of BizTalk360, within your own BizTalk Environments. Get started with the free 30 days trial. If you are already using BizTalk360 you can download the latest version directly from the product and upgrade, it to enjoy the new features.

Author: Praveena Jayanarayanan

I am working as Senior Support Engineer at BizTalk360. I always believe in team work leading to success because “We all cannot do everything or solve every issue. ‘It’s impossible’. However, if we each simply do our part, make our own contribution, regardless of how small we may think it is…. together it adds up and great things get accomplished.” View all posts by Praveena Jayanarayanan

Microsoft Integration Weekly Update: July 30, 2018

Microsoft Integration Weekly Update: July 30, 2018

Do you feel difficult to keep up to date on all the frequent updates and announcements in the Microsoft Integration platform?

Integration weekly update can be your solution. It’s a weekly update on the topics related to Integration – enterprise integration, robust & scalable messaging capabilities and Citizen Integration capabilities empowered by Microsoft platform to deliver value to the business.

If you want to receive these updates weekly, then don’t forget to Subscribe!

Feedback

Hope this would be helpful. Please feel free to reach out to me with your feedback and questions.

Advertisements

Demystify Invalid type name error on BizTalk Schemas (Part II)

Demystify Invalid type name error on BizTalk Schemas (Part II)

In the last post, we try to demystify the reason and cause of the error: Invalid type name. The root node type has to be a valid C# identifier when you are working with a schema with a single root node.

In this second part of the post, we will address what happens If we are working with a schema with multiple root nodes, and two or more root nodes contains hyphens (-) or any other punctuation characters?

Let’s take the following example, where we have:

  • The root node “My-NAME-SANDRO” with the “RootNode TypeName” property set as “My-NAME-SANDRO”
  • And the root node “Let-SEE-What-happens” with the “RootNode TypeName” property set as “Let-SEE-What-happens”

BizTalk Schema: Invalid type name error

If we try to build our BizTalk Server solution within Visual Studio it will fail with the following errors:

Severity Code Description Project File Line Suppression State
Error Node “My-NAME-SANDRO” – Specify a valid .NET type name for this root node. The current .NET type name of this root node is invalid (it is a reserved BizTalk Keyword or is an invalid C# identifier). c:users…documentsvisual studio 2015ProjectsBizTalk Server Project1BizTalk Server Project1Schema2.xsd 1
Error Node “Let-SEE-What-happens” – Specify a valid .NET type name for this root node. The current .NET type name of this root node is invalid (it is a reserved BizTalk Keyword or is an invalid C# identifier). c:users…documentsvisual studio 2015ProjectsBizTalk Server Project1BizTalk Server Project1Schema2.xsd 1

BizTalk Schema: Invalid type name errors

Cause

Official Microsoft documentation state that The Type Name property of this schema file is not valid. Because the value of the Type Name property is used as the name of an automatically generated C# class name, it must be a valid C# identifier and cannot be a reserved BizTalk keyword.

And in this case – when working with multiple root nodes in a single schema – it is not allowed the use of hyphens or other punctuations like “.”, “!” and so on, with the exception for the underscore (_).

We saw in the previous post that we could work around this “limitation” in schemas with a single root node by open the Schema with XML (Text) Editor and fix the “rootTypeName” for the value you want. In this case, it will not work.

Solution

As hyphens, or any other punctuation characters, are not allowed, the only solution you have is to change it from the “RootNode TypeName” property. For example:

  • For the node “My-NANE-SANDRO” the “RootNode TypeName” value can be “MyNAMESANDRO” or “My_NAME_SANDRO” instead of “My-NAME-SANDRO”
  • And for the node “Let-SEE-What-happens” the “RootNode TypeName” value can be “LetSEEWhathappens” or “Let_SEE_What_happens” instead of “My-NAME-SANDRO

By removing all hyphens, or any other punctuation characters, from this property in all schemas you will guarantee that you will not face this issue again at least in this project.

Conclusion

As a best practice you should use hyphens, or any other punctuation characters in the “RootNode TypeName”, nevertheless:

  • The use of hyphens or any other punctuation characters is allowed in schemas with a single root node;
  • The use of hyphens or any other punctuation characters is not allowed in schemas with multiple single root node;

And by the way, can my root node name still contain hyphens or any other punctuation characters?

Yes, it can. In all scenarios as long the root “RootNode TypeName” property doesn’t contain any of them as you will see in the picture below:

BizTalk Schema: Invalid type name error resolved

Author: Sandro Pereira

Sandro Pereira lives in Portugal and works as a consultant at DevScope. In the past years, he has been working on implementing Integration scenarios both on-premises and cloud for various clients, each with different scenarios from a technical point of view, size, and criticality, using Microsoft Azure, Microsoft BizTalk Server and different technologies like AS2, EDI, RosettaNet, SAP, TIBCO etc. He is a regular blogger, international speaker, and technical reviewer of several BizTalk books all focused on Integration. He is also the author of the book “BizTalk Mapping Patterns & Best Practices”. He has been awarded MVP since 2011 for his contributions to the integration community. View all posts by Sandro Pereira

Demystify Invalid type name error on BizTalk Schemas (Part I)

Demystify Invalid type name error on BizTalk Schemas (Part I)

A few days ago, while trying to compile a BizTalk Server solution I got the following error: Invalid type name. The root node type has to be a valid C# identifier. I end up solving this problem but while I was preparing this post the reason I realize that the cause and respective solution that I thought to be behind this error was, in fact, incomplete and not accurate.

Most of the documentation available state that:

  • The .Net framework doesn’t allow the “-” within TypeNames because the “-” is reserved.
  • The use of a hyphen (-) in RootNode TypeName is not allowed.

And that statement is incorrect or at least incomplete!

1) What happens if I create a root node with hyphens (-)?

If we create a root node with hyphens, let’s say “My-NAME-SANDRO”, by default the:

  • The “NodeName” property will be set as “My-NAME-SANDRO”;
  • And the “RootName TypeName” property will also be set as “My-NAME-SANDRO”;

And as you can see in the picture below, you will be able to create a schema with a one or more hyphens (-) on the root node name and type name, in fact, they should be the same if you only have one root node in the schema.

BizTalk Schemas: Invalid type name doesn't happen

And again, as you see in the picture you will be able to build and deploy it with success.

But, let’s play a little in order to demystify this Invalid type error that sometimes happens.

2) What happens if we try to change the “RootNode TypeName” property to other value like “MyNAMESANDRO” – without any hyphens (-)?

Nothing will happen, we will still be able to compile and successfully deploy our schema.

BizTalk Schemas: Invalid type name doesn't happen

In fact, this is the best approach.

3) Now, what happens if we try to change the “RootNode TypeName” property to other value like “My-NAMESANDRO” – with hyphens (-)?

Note, that we are changing to a “RootNode TypeName” property to a different value than the “Node Name” but this time including one or more hyphens (-).

If we try to do that we will receive the following error:

Invalid type name. The root node type name has to be a valid C# identifier. It cannot be same as the type name of any other root nodes in this schema

BizTalk Schemas: Invalid type name

Cause

Official Microsoft documentation state that the Type Name property of this schema file is not valid. Because the value of the Type Name property is used as the name of an automatically generated C# class name, it must be a valid C# identifier and cannot be a reserved BizTalk keyword.

In fact, it will not allow, any hyphens or other punctuations like “.”, “!” and so on with the exception of the underscore (_)… directly from the BizTalk Editor – we will get that sorted out (properly cleared) later.

Solution

As hyphen, or any other punctuation characters, are “not allowed”, you should “removed it” from the “RootNode TypeName” property. For example:

  • For the node “My-NANE-SANDRO” the “RootNode TypeName” value can be “MyNAMESANDRO” or “My_NAME-SANDRO” instead of “My-NAMESANDRO” or event “My-NAME_SANDRO”

By removing all hyphens, or any other punctuation characters, from this property in all schemas you will guarantee that you will not face this issue again at least in this project.

4) I change to “MyNAMESANDRO”, what happens if we try to roll back and change the “RootNode TypeName” property again to the original “My-NAME-SANDRO”?

Here’s where the story becomes funny, it will fail!

BizTalk Schemas: Invalid type name

Humm… what? How that’s possible if in point 1 we saw that if the root node name and type name is the same it should work, and it did work before?

Cause

Again, official Microsoft documentation state that the Type Name property of this schema file is not valid. Because the value of the Type Name property is used as the name of an automatically generated C# class name, it must be a valid C# identifier and cannot be a reserved BizTalk keyword.

In fact, once you change the name for something else without hyphens or any other punctuation characters, you cannot rollback to the origin (or default) RootName TypeName “My-NAME-SANDRO”.

Solution

The same solution here, as a hyphen, or any other punctuation characters, are “not allowed”, you should “removed it” from the “RootNode TypeName” property. For example:

  • For the node “My-NANE-SANDRO” the “RootNode TypeName” value can be “MyNAMESANDRO” instead of “My-NAMESANDRO” or event “My-NAME_SANDRO”

However, if you want to rollback to the default RootNode TypeName value, you need to delete the root node and recreate from the scratch, at least directly from the BizTalk Schema Editor.

What is actually the Cause

I think at some point in the past this was a limitation, or maybe a limitation in certain scenarios (we will check this on Part II later on in a different blog) but not really at the moment or in this case: a schema with a single root node.

So, if it worked in the first approach – point 1 – why doesn’t work in the other approaches – point 3 and 4?

Well, in this case, this is just a BizTalk Schema Editor limitation or bug, but let’s call it a limitation.

What is actually the Solution

To solve point 3 and 4 you just need to open the Schema with XML (Text) Editor:

05-BizTalk-Schema-Invalid-type-name-OK

And fix the “rootTypeName” for the value you want: “My-NAMESANDRO” or back to “My-NAME-SANDRO”

<?xml version="1.0" encoding="utf-16"?>
<xs:schema xmlns="http://BizTalk_Server_Project1.Schema1" xmlns:b="http://schemas.microsoft.com/BizTalk/2003" targetNamespace="http://BizTalk_Server_Project1.Schema1" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="My-NAME-SANDRO">
    <xs:annotation>
      <xs:appinfo>
        <b:recordInfo rootTypeName="My-NAMESANDRO" />
      </xs:appinfo>
    </xs:annotation>
    <xs:complexType>
      <xs:sequence>
        <xs:element name="First-Name" type="xs:string" />
        <xs:element name="Last_Name" type="xs:string" />
      </xs:sequence>
    </xs:complexType>
  </xs:element>
</xs:schema>

Save it, you now can open it again with BizTalk Schema Editor, compile it and deploy it with any problem.

Keep posted for Part II of this blog post.

Author: Sandro Pereira

Sandro Pereira lives in Portugal and works as a consultant at DevScope. In the past years, he has been working on implementing Integration scenarios both on-premises and cloud for various clients, each with different scenarios from a technical point of view, size, and criticality, using Microsoft Azure, Microsoft BizTalk Server and different technologies like AS2, EDI, RosettaNet, SAP, TIBCO etc. He is a regular blogger, international speaker, and technical reviewer of several BizTalk books all focused on Integration. He is also the author of the book “BizTalk Mapping Patterns & Best Practices”. He has been awarded MVP since 2011 for his contributions to the integration community. View all posts by Sandro Pereira

BizTalk Server Tips and Tricks: Configure Visual Studio to run with elevated permissions (as administrator)

BizTalk Server Tips and Tricks: Configure Visual Studio to run with elevated permissions (as administrator)

With all these new security features present on the latest Microsoft operating systems, don’t get me wrong they are good, sometimes our life as BizTalk Developers seems like it’s reversing and becoming a nightmare, especially if you are a consultant working with multiple different clients, environments, and projects.

Most of the times I start developing a new project at a new client, the first time I try to deploy a solution I get an “Error 87 Access is denied. (Exception from HRESULT: 0x80070005 (E_ACCESSDENIED))…” error message.

Visual Studio: BizTalk Server deployment fails

There are several possible causes for you to get such Access Denied errors when deploying BizTalk solutions directly from Visual Studio. Most common is that you don’t have the right BizTalk privileges to deploy artifacts, or in other words, you are not a local Administrator.

But most of the time is simpler than that and indeed is related with these additional securities setting present in recent Windows Server versions. For you to be able to successfully deploy a BizTalk Server solution directly from Visual Studio, you must run Visual Studio as an Administrator, or with elevated permissions, because BizTalk assemblies need to be deployed into the GAC. What normally happens, is that if you have User Account Control (UAC) activated, or sometimes even deactivated, there are some additional securities setting present in recent Windows Server versions that, by default, doesn’t run Visual Studio with elevated permissions.

The quick solution is for you to run Visual Studio as an Administrator by simply run below step:

  • Right-click under Visual Studio and choose “Run as administrator” option.

Visual Studio: Run as Administrator

The problem with this approach is that you need to remember yourself to do it every time you want to run Visual Studio, otherwise the next time you try to deploy the solution it will fail again with the same error.

How to properly address this problem?

Actually, this problem can be simply addressed by:

  • Access the devenv.exe file on the file system, which is by default installed in: “C:Program Files (x86)Microsoft Visual Studio 14.0Common7IDE”
  • Right-click devenv.exe and select “Troubleshoot compatibility”

Visual Studio: troubleshoot compatibility

  • On the “Select troubleshooting option” page, select “Troubleshoot compatibility” option

Visual Studio: troubleshoot option

  • On the “What problems do you notice?” page, select the “The program requires additional permissions” option and then click “Next”

Visual Studio: requires additional permissions

  • On the “Test compatibility settings for the program” page, click “Test the program…”, wait for the program to launch and then click “Next”
  • Select “Yes, save these settings for this program”

Visual Studio: save settings

  • Click “Close”

You will never face this problem again… at least at that client.

Enjoy and Stay tuned for new BizTalk Server Tips and Tricks!

Author: Sandro Pereira

Sandro Pereira is an Azure MVP and works as an Integration consultant at DevScope. In the past years, he has been working on implementing Integration scenarios both on-premises and cloud for various clients, each with different scenarios from a technical point of view, size, and criticality, using Microsoft Azure, Microsoft BizTalk Server and different technologies like AS2, EDI, RosettaNet, SAP, TIBCO etc. View all posts by Sandro Pereira

Migrating BizTalk to Azure iPaaS – Part 1

Migrating BizTalk to Azure iPaaS – Part 1

By Bill Chesnut

This is the 1st of a multipart series of Blog Posts to help companies understand Migrating BizTalk to Azure Integration Platform as a Service (IPaaS).

Should I be migrating from BizTalk to Azure iPaaS? This is a question I am being ask more and more lately for a couple of different reasons.

BizTalk development has always been a very specialized skill set with a limited number of resources available in the market, so companies are now starting to look at Azure iPaaS as a viable alternative to BizTalk in terms of finding developers with the correct skill sets.

There are 3 other reasons many companies are looking at moving from BizTalk to Azure iPaaS:

  • cost, consumption pricing instead of product licensing;
  • location of data, many companies are dealing with their consumers over the internet, so having their integration resources in Azure makes more sense;
  • Infrastructure, companies are seeing the advantages of not having to maintain their own infrastructure and using Platform as a Service (PaaS) and Software as a Service (SaaS) offerings as a cost-effective alternative.

Unlike the BizTalk middleware products that covered most features required for all integration scenarios, Azure iPaaS is a collection of Azure services that may or may not be utilised for each scenario.

The base components that make up Azure iPaaS are Service Bus, Logic Apps, API Management and Event Grid. For some integration scenarios you may also use services like but not limited to: SQL Database, Storage, Function App, Web Site (hosing your WebAPI or WebJobs), Cosmos Db and Virtual Machines.  In this series of blog posts, I will look at the different scenarios and the Azure services required.

Instead of spending time here to explain each of the Azure iPaaS services, I have included links to Azure documentation on each product/service mentioned:

All Azure Product/Services can be found here: https://docs.microsoft.com/en-us/azure/#pivot=products

Before you jump full steam into migrating from your on-premises (or cloud hosted) BizTalk to Azure iPaaS, there are a few things that you need to look at to see if the migration makes sense:

  • Location of your data
  • Sensitivity of your data
  • Security Policies for accessing cloud-based resources
  • Location of consumers/partners

Let’s look at each of these items in detail:

Location of your data, if most of your data currently used by BizTalk is located inside of your data center it would be hard to justify moving all of that data to and from Azure to use Azure iPaaS.

If your data is from your consumers/partners and it is coming in and going out via the internet, iPaaS can be a great solution in terms of cost, scalability and availability.

Sensitivity of your data, again this will relate back to the first item, if the data is coming in and going out over the internet, your company has already accepted the risk, so iPaaS will be a viable solution, otherwise, a risk assessment will need to be undertaken.

Security Policies for accessing cloud based resources can sometimes be one of the hardest nuts to crack, it requires educating your management to the benefits and security safe guards of Azure. It also means designing your iPaaS solution to use some of the additional security features available in Azure.  The final point to look at is location of consumers/partners, again if everyone using the integration service of BizTalk are located inside of your data center, having them traverse to Azure and back for data does not make sense, but if many of your consumers/partners are outside of your offices or mobile users, Azure make perfect sense for availability and scale.

Once a company has decided that moving to Azure iPaaS makes sense, the next item to consider is the structure of their existing BizTalk integration solution, does the existing BizTalk solutions follow best practice:

  • having incoming data mapped to an internal/canonical format
  • processed in BizTalk using the internal/canonical format
  • then mapped back to the outbound format before leaving BizTalk

if so, this will make the migration to Azure iPaaS a less disruptive and staged process.

This series will continue with the following blog posts:

  • Migrating inbound messaging to Azure using Logic Apps, Event Grid, Service Bus and the BizTalk Claim Check Pipeline component that I have built.
  • Migrating outbound messaging to Azure, using the same tooling as inbound
  • Choices for message archiving in Azure
  • End to End Monitoring of Azure iPaaS
  • EDI (EDIFACT, X12 & AS2) Capabilities of Azure iPaaS
  • Azure iPaaS CI/CD

Thanks for taking the time to view this blog post.

Cross Posted on: http://www.sixpivot.com.au

Visual Studio: Failed to create window handle for pane while trying to open a Schema

Visual Studio: Failed to create window handle for pane while trying to open a Schema

There are errors that we are familiar with, but I guess this you may never hear about it. I didn’t know it until today: Failed to create window handle for pane ”.

Visual Studio: Failed to create window handle for pane

This happened today while I was trying to open a Schema from my BizTalk Server project. Every other artifact opened well in their designer/editor like Orchestrations, Maps, and Pipelines… with the exception of Schemas.

I try to force it open by the BizTalk Schema Editor by right-clicking on the schema, open with and select the BizTalk Editor (Default) without any result.

Visual Studio: Failed to create window handle for pane open with Editor

I even try to force it open with another editor like XML (Text) Editor – it worked by the way – and once again try to open by the Schema Editor, again, without any practical result.

Note: I had 3 visual studio instances opened with 3 different projects: 2 of them worked well and only one had this problem.

Also, when I try to close this particular Visual Studio instance, I got another error:

Microsoft Visual Studio: Object reference not set to an instance of an object

Microsoft Visual Studio: Object reference not set to an instance of an object

Cause

Honestly, I have no f*** idea… but I know the solution.

Solution

To solve this problem, you need to… do what we normally do when nothing works!

  • Close the Visual Studio and open again

Problem solved!

Because I was unable to close the Visual Studio – Object reference not set to an instance of an object – I terminated the Visual Studio task using the task manager.

Visua Studio: Failed to create window handle for pane End task with Task Manager

Author: Sandro Pereira

Sandro Pereira lives in Portugal and works as a consultant at DevScope. In the past years, he has been working on implementing Integration scenarios both on-premises and cloud for various clients, each with different scenarios from a technical point of view, size, and criticality, using Microsoft Azure, Microsoft BizTalk Server and different technologies like AS2, EDI, RosettaNet, SAP, TIBCO etc. He is a regular blogger, international speaker, and technical reviewer of several BizTalk books all focused on Integration. He is also the author of the book “BizTalk Mapping Patterns & Best Practices”. He has been awarded MVP since 2011 for his contributions to the integration community. View all posts by Sandro Pereira

BizTalk FILE Adapter Error: File transport does not have read/write privileges for receive location

BizTalk FILE Adapter Error: File transport does not have read/write privileges for receive location

In the spirit of documenting all possible and imaginary errors, let’s address today a classic one: File transport does not have read/write privileges for receive location “DRIVE:FOLDER NAME”.

This happens more than you may think, and today after finish creating a backup port for testing a new process while I was trying to Enable the File receive location I got the following errors:

File transport does not have read/write privileges for receive location “C:BizTalkPortsIN_POLLING”.

BizTalk Server: File transport does not have read/write privileges for receive location - Error Descriptions

Followed by other similar warning messages:

The Messaging Engine failed to add a receive location “POLLING_FILE” with URL “C:BizTalkPortsIN_POLLING*.xml” to the adapter “FILE”. Reason: “File transport does not have read/write privileges for receive location “C:BizTalkPortsIN_POLLING”. “.

The receive location “POLLING_FILE” with URL “C:BizTalkPortsIN_POLLING*.xml” is shutting down. Details:”The Messaging Engine failed while notifying an adapter of its configuration. “.

Cause

As I said before this is a classic error, the reason is quite obvious and the error message clearly identifies the origin of the problem.

The problem is that the user that is running the BizTalk Server host instance(s) don’t have read/write privileges in that specific folder.

BizTalk Server: File transport does not have read/write privileges for receive location - User that is running Services

Solution

To solve this problem, you need to give readwrite privileges for the user that is running BizTalk Server Host Instance, in my case “BTSHostSrvc”, into that specific folder. For that you need to:

  • From the file system, access to the folder in question and then right-click on the folder and select the “Properties” option;
  • If attribute “Read-only (only applies to files in folder)” is enabled (selected), disable it (unselect);
  • Then go to the “Security” tab and then click “Edit…” button and then “Add…” button
    • Search for the user that is running the BizTalk Server Host Instance and then click “OK”;
    • For that specific user give read and write access;
      • In my case, because this was/is a “BizTalk process” folder, I gave “Full control”

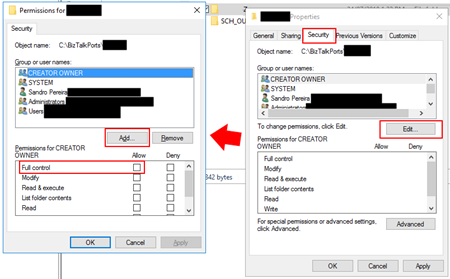

BizTalk Server: File transport does not have read/write privileges for receive location - Give user Access

  • At the click “OK” and “OK” once again.

Once you give access to the user this classic problem is going away… until the next time!

Author: Sandro Pereira

Sandro Pereira lives in Portugal and works as a consultant at DevScope. In the past years, he has been working on implementing Integration scenarios both on-premises and cloud for various clients, each with different scenarios from a technical point of view, size, and criticality, using Microsoft Azure, Microsoft BizTalk Server and different technologies like AS2, EDI, RosettaNet, SAP, TIBCO etc. He is a regular blogger, international speaker, and technical reviewer of several BizTalk books all focused on Integration. He is also the author of the book “BizTalk Mapping Patterns & Best Practices”. He has been awarded MVP since 2011 for his contributions to the integration community. View all posts by Sandro Pereira

How we introduced DevOps during the release of BizTalk360 v8.8

How we introduced DevOps during the release of BizTalk360 v8.8

We are excited to launch version 8.8 of BizTalk360, where we have added improvements to existing features and resolved quite a few numbers of outstanding support tickets which were raised by our customers.

As others are excited, I’m even little bit more excited about the BizTalk360 new version release. The reason being, in this release every person in the team has transformed and performed as a DevOps in BizTalk360. Everyone on the team provided their contribution in the form of developing a new feature, enhancing an existing feature, testing, documenting, writing blogs and so on.

DevOps Transformation

2017 was a special year for BizTalk360 product support, we had learned many new things. We started this year with a lot of training. We all product support engineers underwent product training with the help of the respective developers who developed the product features and with the QA who tested.

In 2018, we evolved ourselves from support engineers to QA cum Product Support engineer this year!!! As a product-based and a start-up company, we have improved ourselves and have learned from previous practices.

Being a support engineer for a long time, I have been involved in the development activity. I take this opportunity to thank everyone in and out of BizTalk360 for this wonderful opportunity.

The Development Process of v8.8

This time we have changed our development process from Agile to Kanban as well. As the process changed, we are in a situation to monitor each task what we do.

In the version 8.7, few of us evolved as a DevOps and worked along with the release. With the hands-on experience in the version 8.7, we planned our 8.8 from the requirement of the features to the post-release validation.

Here is the task list what we followed in 8.8.DevOps at BizTalk360: Task list

Sprint plan

We planned for 2 months duration with 4 sprints, each sprint holding 2 weeks of duration in this release. As we have our own priority (like Support, QA, Dev involved) based on our availability, the tasks were allocated in each sprint.

During the completion of a sprint and to start another sprint, the feature allocated must be in the deliverable state.

DevOps at BizTalk360: Sprint plan

Task plan

The tasks will be assigned to the individuals based on the nature of their jobs. The assigned tasks must be completed before sprint completion. When I say fixing or enhancement of the feature for the sprint, it doesn’t mean just development. It includes:

  • development
  • testing
  • documentation of the feature
  • support document
  • mock Release notes

Documentation

For the Release Notes, we took a complete list of the development tasks and decided what needed to be added in the Release Notes and the support documentation.

If it’s a feature enhancement, we will change the existing documentation according to the feature enhancement. For a new feature, we created a new article in our support portal (https://assist.biztalk360.com). Also, we prepared a rough Release Notes article.

Screenshot of mock release notes.

DevOps at BizTalk360: Release Notes mock

Once we complete a feature enhancement or a new feature document, we will send it to one of the team members for internal review.  After review, we will pass it on to the Documentation team to add or make changes to the support document.

Here is a part of the list of the documentation index what we had done in 8.8.

DevOps at BizTalk360: Documentation Index

Post-release validation

The process does not end once the product is ready for release. We do have few activities for the post-release validations to make the release complete and we were also involved in these activities. The activities include the tasks needed to be done before the product is announced to the public.

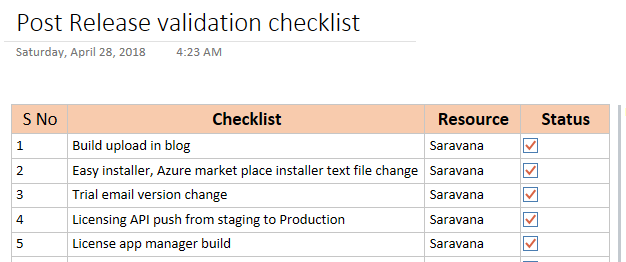

Here is the sample list of post-release validation list.

DevOps at BizTalk360: post release validation checklist

Daily Stand-up

Meetings are always helpful for the team coordination and understand the activities and make sure everyone on the team is on the same page. Daily stand-up is one another way to update our daily task, to reveal our technical challenges what we had faced on the day before, the tasks what we have worked and what we are going to work on the day.

If there are any challenges faced, any one of the people from the team or from other teams will help you out to overcome the problem. Also, we get feedback and suggestion on the tasks. If we have any technical dependencies we will convey in the meeting so that within a team all will get to know who is working on what. It helped us to complete the task on time.

Along with the task update, we will also verify the development progress, testing, documentation of the feature, support and mock release notes.

Show and Tell

As the name implies, we show our developed feature and tell the progress of our development activity to the team. This is something different from the Daily stand-up as we would showcase the tasks performed for the entire week and demo the feature developed to have the feedback from the management.

Show and tell is conducted every Monday afternoon. We will showcase what we developed during the meeting to our CEO along with the external team members to get their feedback and suggestion. Based on the suggestion we will make changes.

Challenges what we faced

It is not that much easy to transform from a QA and Technical Support engineer to DevOps even though we handle technical things.

From our side, at the very beginning stage, we faced a problem with the priority and time consumption. At a very earlier stage, I was not able to focus completely on the development since we are handling the support. We receive support cases and our priority is to solve the tickets as soon as possible. We could overcome this by the practice in various sprints.

“Success is where preparation and opportunity meet”

From my personal point of view, since we handled from the requirement to post-release validation I would like to name it as contribute360. I personally take this opportunity once again to thank everyone in and out of BizTalk360 for this wonderful opportunity and believing in us. We are looking forward to much more opportunity.

Feedback portal

>>Which feature would you like to see coming in BizTalk360 in upcoming releases? <<

Now we would like to request you, our customers, to please take the time to fill this questionnaire. This helps us to prioritize the next upcoming feature tasks and will let us know what your main pain points are. This way we can further improve the product and make it a usable as possible for you.

Author: Sivaramakrishnan Arumugam

Sivaramakrishnan is our Support Engineer with quite a few certifications under his belt. He has been instrumental in handling the customer support area. He believes Travelling makes happy of anyone. View all posts by Sivaramakrishnan Arumugam
